Well, This blog will talk about some thoughts when I do the assignment 2 of UCAS compiler(graduate course). The code will be published here
This assignment require us to resolve all possible callees in every callsite. There are 2 cases here, direct call and indirect call by function pointers. At first, I think it is a simple data flow analysis problem, and we do not need to handle LOAD/STORE statement. With LLVM IR in SSA form, we can track use-def chain to find the callee set of a pointer. In this way, we can even get flow sensitivity out of box.
Then you will find you can not pass test14.c, which kind of needs a bit of “path sensitivity”. See the below code, to get the commented answer at the end, we need to execute 2 branches separately. Then when the control flow reach the second callsite, there are 2 cases:
case 1:
s_fptr= plusa_fptr= plusgoo+ptr= foo
case 2:
s_fptr= minusa_fptr= plusgoo+ptr= clever
So the return value of callsite 2 will always be “plus”, which is the target method of callsite 3.
int (*foo(int a, int b, int (*a_fptr)(int, int), int(*b_fptr)(int, int) ))(int, int) {
return a_fptr;
}
int (*clever(int a, int b, int (*a_fptr)(int, int), int(*b_fptr)(int, int) ))(int, int) {
return b_fptr;
}
int moo(char x, int op1, int op2) {
int (*a_fptr)(int, int) = plus;
int (*s_fptr)(int, int) = minus;
int (* (*goo_ptr)(int, int, int (*)(int, int), int(*)(int, int)))(int, int)=foo;
int (*t_fptr)(int, int) = 0;
if(x == '+')
{
t_fptr = goo_ptr(op1, op2, a_fptr, s_fptr); // 1
s_fptr=a_fptr;
}else
{
goo_ptr=clever;
}
// goo_ptr -> foo clever | s_fptr -> minus plus
t_fptr = goo_ptr(op1, op2, s_fptr, a_fptr); // 2
t_fptr(op1, op2); // 3
return 0;
}
// 24 : foo
// 31 : clever,foo
// 32 : plus
If we follow the traditional data flow approach, that is, we merge the pointer information at the PHI node, the callsite 3 will have 2 targets: “plus” and “minus”. So the difference here is, merging the data flow at the PHI node(as soon as possible) or at the function exit point(in the end).
So the intuitive solution is, forking execution flow at every branch. Yes, kind of like symbolic execution.
By the way, if you know about some basic concepts of data flow analysis, the “merge over paths(MOP)” solution and the “maximal fixed point(MFP)” solution, MOP is what we need. Because the data flow analysis here is not distribute!
For MOP & MFP, you can visit here .
Fortest19.c , you can check whether the condition is constant(always true or always false) at every branch instruction. It’s called non-forking in symbolic execution.
Implementation for MFP
here I will talk a little about my implementation of the “forking” mechanism. At first, we need a state abstraction. The first version of mine seems like below:
struct State {
map<const Value *, FuncPtrSet> funcPtrMap; // environment
const Instruction * PC; // branch Instruction pointer, as a "return address"
};
Things does not work well when we encounter some complex branches, the state above DO NOT track which branch(true or false) we chose before. So we should change to this:
struct State {
map<const Value *, FuncPtrSet> funcPtrMap; // environment
const Instruction * PC; // branch Instruction pointer, as a "return address"

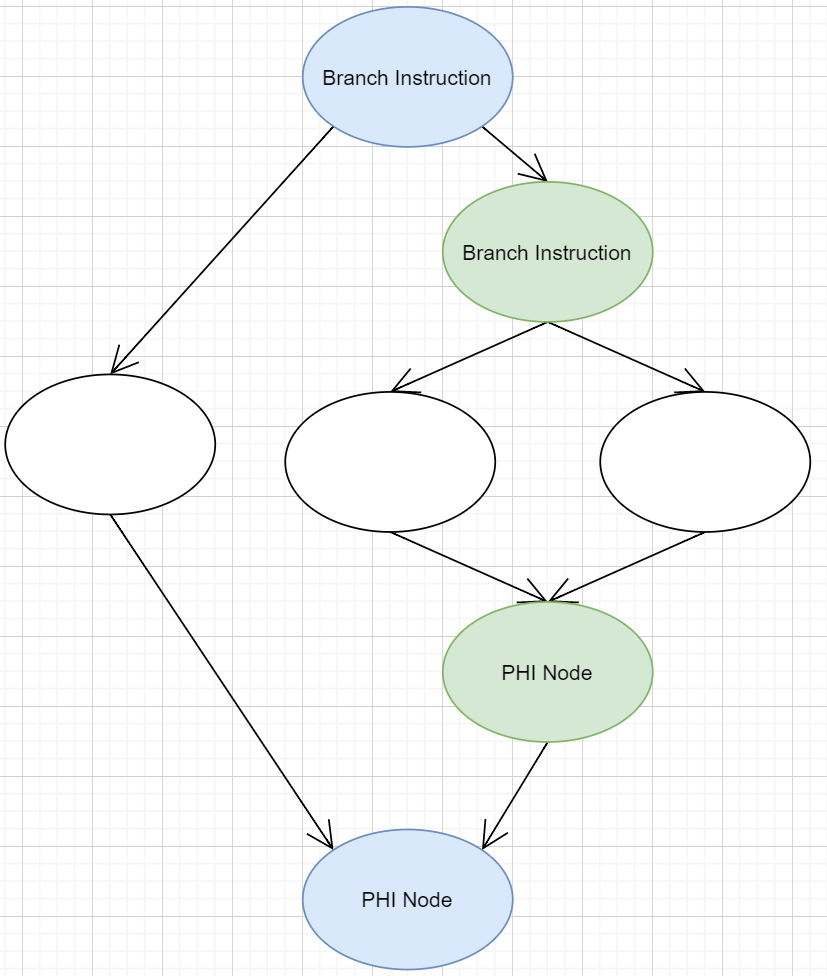

stack<int> branchLabels; // branches we have taken
};
